Physical Process & Pilot Scale Modeling

Are you developing a unique process or design for a challenging bulk solid?  Jenike & Johanson has the experienced staff, knowledge, and specialized tools to perform both physical and real-world analytical modeling studies.  We understand the importance of making sure the models are accurately scaled geometrically and with respect to bulk material flow properties.

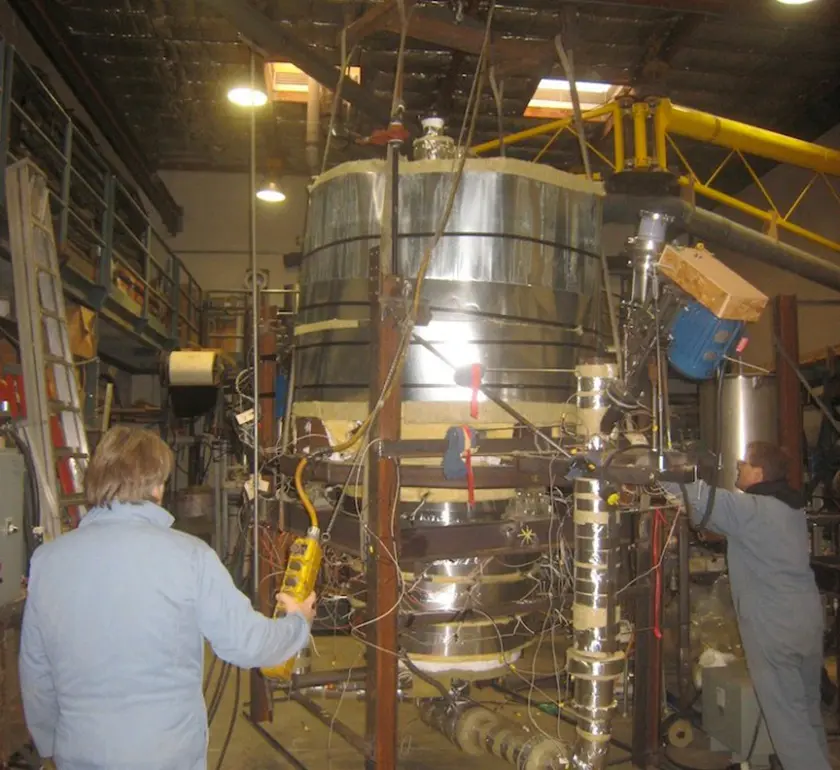

Modeling of a complex hopper.

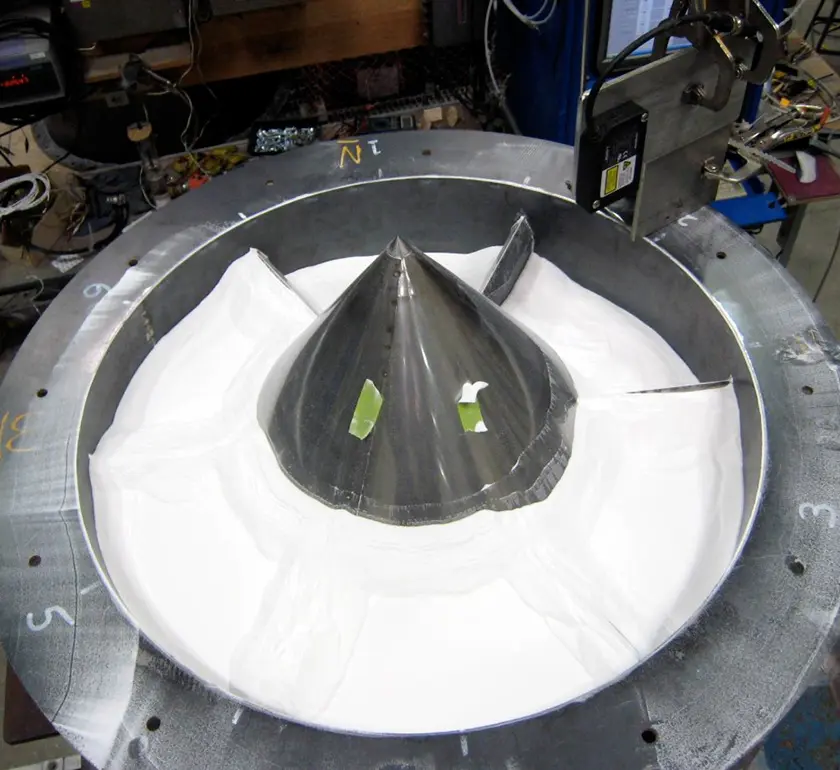

Modeling of a bullet insert for uniform powder flow.

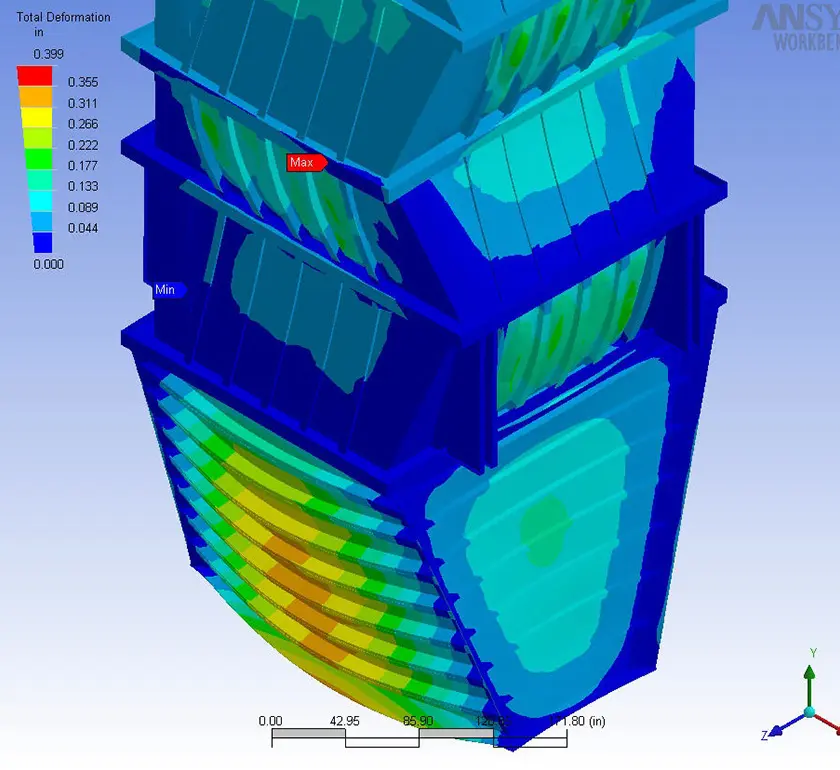

Results of a structural FEA (Finite Element Analysis).

Physical Modeling Capabilities

How we can help you with Physical Modeling

  • Proof-of-concept prototyping, pilot-scale and unique solids process modeling
  • Powder fluidization and pneumatic conveying tests
  • Silo quaking, thumping, vibration testing, and analysis
  • Flow visualization experiments
  • High accuracy micro-feeding
Engineer planning

Physical Modeling: Project Examples

  • Feeding a sticky, cohesive powder at extremely low rates (1 g/minute)
  • Micro-dosing a seasoning mixture uniformly
  • Aligning pharmaceutical tablets in a high speed filler
  • Filling of ammunition cartridges at high speeds
  • Feeding a reactor with biomass with continuous, high accuracy control
  • Operating powder fluidization model at high temperature
  • Testing of large particle bulk solids (e.g., coal and switch grass)
|Analytical| Modeling Capabilities

How we can help you with Analytical Modeling

Using proprietary tools developed in-house based decades of bulk material handling research and commercial software such as ANSYS®, we have extensive analytical modeling capabilities.

Discrete Element Method (DEM) simulations of particle flow

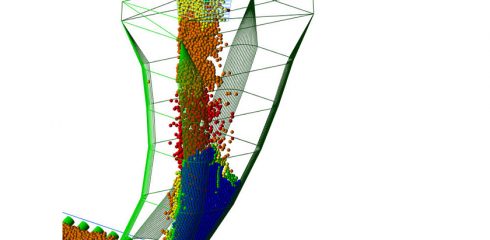

  • Transfer chute analysis and design (use of calibrated DEM model)
  • Prediction of absolute wear in transfer chutes and hoppers/silos
  • Hopper analysis and design

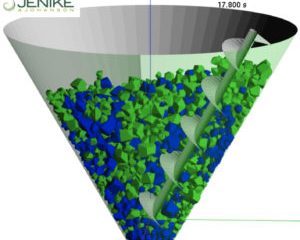

  • Rotating equipment (kilns, blenders) analysis

Process Equipment Analysis

  • Particle-gas diffusion modeling for purge column residence time analysis
  • Particle drying analysis for design of direct drying (contact bed) systems
  • Gas-solids models for powder settlement, flow through lock-hoppers
  • Air blaster design tool for selection, location, and usage optimization

Finite Element Analysis (FEA)

Jenike & Johanson engineer
Jenike & Johanson engineer

Do You Need an Engineer to Help You With Physical & Analytical Modeling?

Reach out to our experienced team of engineers who will provide consulting, testing and engineering services!
